Adapter for LabTool-48UXP/848XP Series
Pin Swapping Table (PDF File) (Universal Adapter)
General purpose adapters or socket converter
P/N
Description / Socket Type
Support List
MSOP-0808-01
8 pin MSOP (Body Width 3mm, Tip To Tip Width 4.9mm, Pitch 0.65mm) universal adapter
Clam-Shell
Socket
MSOP-1010-01
10 pin MSOP (Body Width 3mm, Tip To Tip Width 4.9mm, Pitch 0.5mm) universal adapter
Open-Top
Socket
PLCC-2020-01
20 pin PLCC (Pitch 1.27mm) adapter for 20 pin PLCC GAL/PAL
Clam-Shell
Socket
PLCC-2824-04
28 pin PLCC (Pitch 1.27mm) adapter (NC =1, 8,15,22) for 28 pin PLCC GAL/PAL
Clam-Shell
Socket
PLCC-2828-11
Universal 28 pin PLCC (Pitch 1.27mm) to 28 pin DIP converter
Clam-Shell
Socket
PLCC-3228-11
32 pin PLCC (Pitch 1.27mm) adapter (NC= 1,12,17,26) for E/EEPROM below 512 K
Open-Top
Socket
PLCC-3228-11C
32 pin PLCC (Pitch 1.27mm) adapter (NC= 1,12,17,26) for E/EEPROM below 512 K
Clam-Shell
Socket
PLCC-3232-11
32 pin PLCC (Pitch 1.27mm) adapter for E/EEPROM with 1M and up
Open-Top
Socket
PLCC-3232-11C
32 pin PLCC (Pitch 1.27mm) adapter for E/EEPROM with 1M and up
Clam-Shell
Socket
PLCC-4440-01
44 pin PLCC (Pitch 1.27mm) adapter (NC= 1,13,23,33) for 44 pin PLCC 16 bit EPROM
Clam-Shell
Socket
PLCC-4440-02
44 pin PLCC (Pitch 1.27mm) adapter (NC= 1,12,23,34) for 44 pin PLCC 875X processor
Clam-Shell
Socket
QFN-0808-01
8 pin QFN (5mm x 6mm, Thickness 0.85mm, Pitch 1.27mm) universal adapter
Open-Top
Socket
QFN-0808-02
8 pin QFN (6mm x 8mm, Thickness 1.0mm, Pitch 1.27mm) universal adapter
Clam-Shell
Socket
QFN-0808-03
8 pin QFN (2mm x 3mm, Thickness 0.6mm, Pitch 0.5mm) universal adapter
Clam-Shell
Socket
QFN-0808-04
8 pin QFN (4mm x 4mm, Thickness 0.6mm, Pitch 0.8mm) universal adapter
Open-Top
Socket
QFN-0808-05
8 pin QFN (6mm x 6mm, Thickness 1.0mm, Pitch 1.27mm) universal adapter
Clam-Shell
Socket
QFN-0808-06
8 pin QFN (3mm x 4mm, Thickness 0.55mm, Pitch 0.8mm) universal adapter
Clam-Shell
Socket
QFN-0808-07
8 pin QFN (2mm x 2mm, Thickness 0.5mm, Pitch 0.5mm) universal adapter
Clam-Shell
Socket
QFN-1616-01
16 pin QFN (5mm x 5mm, Pitch 0.8mm) universal adapter (Freescale MC9S08QG8)
Clam-Shell
Socket
QFN-1616-02
16 pin QFN (4mm x 4mm, Pitch 0.65mm) universal adapter (Microchip PIC16LF1824TIML)
Clam-Shell
Socket
QFN-2020-01
20 pin QFN (4mm x 4mm, Thickness 0.9mm, Pitch 0.5mm) universal adapter
Clam-Shell
Socket
QFN-2020-02
20 pin QFN (5mm x 5mm, Thickness 0.9mm, Pitch 0.65mm) universal adapter
Clam-Shell
Socket
QFN-2424-01
24 pin QFN (4mm x 4mm, Pitch 0.5mm) universal adapter (Motorola MC68HC908JB8)
Clam-Shell
Socket
QFN-2424-02
24 pin QFN (5mm x 5mm, Pitch 0.65mm) universal adapter
Clam-Shell
Socket
QFN-2828-01
28 pin QFN (6mm x 6mm, Pitch 0.65mm) universal adapter (Microchip PIC 16F87X family)
Clam-Shell
Socket
QFN-2828-02
28 pin QFN (5mm x 5mm, Pitch 0.5mm) universal adapter
Clam-Shell
Socket
QFN-2828-03
28 pin QFN (4mm x 4mm, Thickness 0.5mm, Pitch 0.4mm) universal adapter
Clam-Shell
Socket
QFN-3232-01
32 pin QFN (5mm x 5mm, Pitch 0.5mm) universal adapter
Clam-Shell
Socket
QFN-3232-02
32 pin QFN (7mm x 7mm, Pitch 0.65mm) universal adapter
Open-Top
Socket
QFN-3636-01
36 pin QFN (6mm x 6mm, Pitch 0.5mm) universal adapter
Open-Top
Socket
QFN-4040-01
40 pin QFN (6mm x 6mm, Pitch 0.5mm) universal adapter
Open-Top
Socket
QFN-4844-01
48 (44) pin QFN (7mm x 7mm, Pitch 0.5mm) universal adapter (Atmel ATmega16/L)
Clam-Shell
Socket
QFN-4848-01
48 pin QFN (7mm x 7mm, Thickness 0.85mm, Pitch 0.5mm) universal adapter
Clam-Shell
Socket
SDP-PIC-20SS
20 pin SSOP (Body Width 200mil, Pitch 0.65mm) universal adapter for Microchip PIC MCU
Open-Top
Socket
SDP-UNIV-16/TS
16 pin TSSOP (Body Width 173mil, Pitch 0.65mm) universal adapter for 8-16 pin TSSOP
Clam-Shell
Socket
SDP-UNIV-16SO
16 pin SOIC (Body Width 150mil, Pitch 1.27mm) universal adapter for 8-16 pin SOIC
Clam-Shell
Socket
SDP-UNIV-16SO/173
16 pin SOIC (Body Width 173mil, Pitch 1.27mm) universal adapter for 8-16 pin SOIC
Open-Top
Socket
SDP-UNIV-16SO/O
16 pin SOIC (Body Width 150mil, Pitch 1.27mm) universal adapter for 8-16 pin SOIC
Open-Top
Socket
SDP-UNIV-20SO/200
20 pin SOIC (Body Width 200mil, Pitch 1.27mm) universal adapter for 8-20 pin SOIC
Clam-Shell
Socket
SDP-UNIV-20SO/200/O
20 pin SOIC (Body Width 200mil, Pitch 1.27mm) universal adapter for 8-20 pin SOIC
Open-Top
Socket
SDP-UNIV-24SS/150
24 pin SSOP (Body Width 150mil, Pitch 0.635mm) universal adapter
Open-Top
Socket
SDP-UNIV-28SO/300
28 pin SOIC (Body Width 300mil, Pitch 1.27mm) universal adapter for 16-28 pin SOIC
Clam-Shell
Socket
SDP-UNIV-28SO/300/O
28 pin SOIC (Body Width 300mil, Pitch 1.27mm) universal adapter for 16-28 pin SOIC
Open-Top
Socket
SDP-UNIV-28SO/450
28 pin SOIC (Tip To Tip 450mil, Pitch 1.27mm) universal adapter for 16-28 pin SOIC
Open-Top
Socket
SDP-UNIV-28SS/200
28 pin SSOP (Body Width 200mil, Pitch 0.65mm) universal adapter
Open-Top
Socket
SDP-UNIV-28TS
28 pin TSOP (8mm x 13.4mm, Pitch 0.55mm) universal adapter for 28 pin TSOP Flash memory
Open-Top
Socket
SDP-UNIV-28TSS
28 pin TSSOP (Body Width 173mil, Pitch 0.65mm) universal adapter
Open-Top
Socket
SDP-UNIV-32TQ
32 pin TQFP (Body Size 7mm x 7mm, Pitch 0.8mm) universal adapter
Clam-Shell
Socket
SDP-UNIV-32TS
32 pin TSOP (8mm x 20mm, Pitch 0.5mm) universal adapter for 32 pin TSOP Flash memory
Open-Top
Socket
SDP-UNIV-32TS/W
32 pin TSOP (8mm x 14mm, Pitch 0.5mm) universal adapter for 32 pin TSOP Flash memory
Open-Top
Socket
SDP-UNIV-40TS
40 pin TSOP (10mm x 20mm, Pitch 0.5mm) universal adapter for 40 pin TSOP Flash memory
Open-Top
Socket
SDP-UNIV-40TSS
40 pin TSSOP (Pitch 0.4mm) universal adapter for 40 pin TSSOP Flash memory
Open-Top
Socket
SDP-UNIV-42SD
42 pin Shrink DIP (Pitch 1.778mm) universal adapter
DIP
Socket
SDP-UNIV-44
44 pin PLCC (Pitch 1.27mm) universal adapter
Open-Top
Socket
SDP-UNIV-44/TS
44 pin TSOP (12mm x 18.5mm, Pitch 0.8mm) universal adapter for Samsung / Toshiba 44pin TSOP NAND Flash memory
Open-Top
Socket
SDP-UNIV-44C
44 pin PLCC (Pitch 1.27mm) universal adapter
Clam-Shell
Socket
SDP-UNIV-44PSO
44 pin PSOP (Body Width 525mil, Pitch 1.27mm) universal adapter for 44 pin PSOP Flash memory
Open-Top
Socket
SDP-UNIV-44Q
44 pin QFP (Body Size 10mm x 10mm, Tip To Tip Size 13.2mm x 13.2mm, Thickness 2mm, Pitch 0.8mm) universal adapter
Clam-Shell
Socket
SDP-UNIV-44Q-P
44 pin QFP (Body Size 10mm x 10mm, Tip To Tip Size 12.6mm x 12.6mm, Thickness 1.75mm, Pitch 0.8mm) universal adapter
Clam-Shell
Socket
SDP-UNIV-44Q-Y
44 pin QFP (Body Size 10mm x 10mm, Tip To Tip Size 13.9mm x 13.9mm, Thickness 2mm, Pitch 0.8mm) universal adapter
Clam-Shell
Socket
SDP-UNIV-44TQ
44 pin TQFP (Body Size 10mm x 10mm, Tip To Tip Size 12mm x 12mm, Thickness 1.2mm, Pitch 0.8mm) universal adapter
Clam-Shell
Socket
SDP-UNIV-44TSS
44 pin TSSOP (Body Width 6.1mm, Tip To Tip 8.1mm, Pitch 0.65mm) universal adapter
Open-Top
Socket
SDP-UNIV-48LQ
48 pin LQFP (Body Size 7mm x 7mm, Tip To Tip Size 9mm x 9mm, Thickness 1mm, Pitch 0.5mm) universal adapter
Clam-Shell
Socket
SDP-UNIV-48SS/300
48 pin SSOP (Body Width 300mil, Pitch 0.635mm) universal adapter
Clam-Shell
Socket
SDP-UNIV-48TS
48 pin TSOP (12mm x 20mm, Pitch 0.5mm) universal adapter for 48 pin TSOP Type I Package Flash memory
Open-Top
Socket
SDP-UNIV-48TS/W
48 pin TSOP (12mm x 14mm, Pitch 0.5mm) universal adapter for 48 pin TSOP Type II Package Flash memory
Open-Top
Socket
SDP-UNIV-48TSS
48 pin TSSOP (Pitch 0.4mm) universal adapter for 48 pin TSSOP Flash memory
Open-Top
Socket
SDP-UNIV-48WS
48 pin WSOP (12mm x 17mm, Pitch 0.5mm) universal adapter for 48 pin WSOP Type I Package Flash memory
Open-Top
Socket

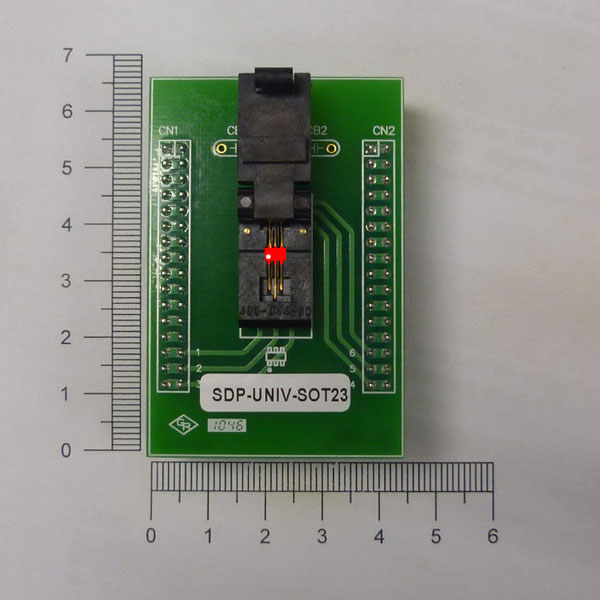

SDP-UNIV-SOT23
6 pin SOT-23 (Body Size 2.9mm x 1.6mm, Pitch 0.95mm) universal adapter
Clam-Shell
Socket

General purpose adapters or socket converter (848XP)
P/N
Description / Socket Type
Support List
GDP-DIP-001
DIP to DIP adapter for Motorola HC705P6/A, HC705P9, ATMEL 90S44xx, AT90S85xx
DIP
Socket
GDP-DIP-002
DIP to DIP adapter for Altera EPC1/2 and Atmel 17Cxxx, 17LVxxx PROM
DIP
Socket
GDP-DIP-003
DIP to DIP adapter for Microchip PIC 16C64/5A/5B/7, 16C74A, 16C77/774, 17LVxxx PROM
DIP
Socket
GDP-DIP-006
DIP to DIP adapter for Atmel ATmega48
DIP
Socket
GDP-DIP-008
DIP to DIP adapter for SUNPLUS SPHE6400A
DIP
Socket
GDP-DIP-009
DIP to DIP adapter for Freescale MC68HC908QY4
DIP
Socket
GDP-EBGA-2401
24 pin EBGA (6mm x 8mm, Pitch 1.0mm, Matrix 4x6) adapter for Macronix MX25L3255D (WELLS)
Open-Top
Socket
GDP-EBGA-2401M
24 pin EBGA (6mm x 8mm, Pitch 1.0mm, Matrix 4x6) adapter for Macronix MX25L3255D (MCS)
Open-Top
Socket
GDP-EBGA-2402
24 pin EBGA (6mm x 8mm, Pitch 1.0mm, Matrix 5x5) adapter for Numonyx M25PX80/16/32/64 (WELLS)
Clam-Shell
Socket
GDP-EBGA-2402M
24 pin EBGA (6mm x 8mm, Pitch 1.0mm, Matrix 5x5) adapter for Numonyx M25PX80/16/32/64 (MCS)
Open-Top
Socket

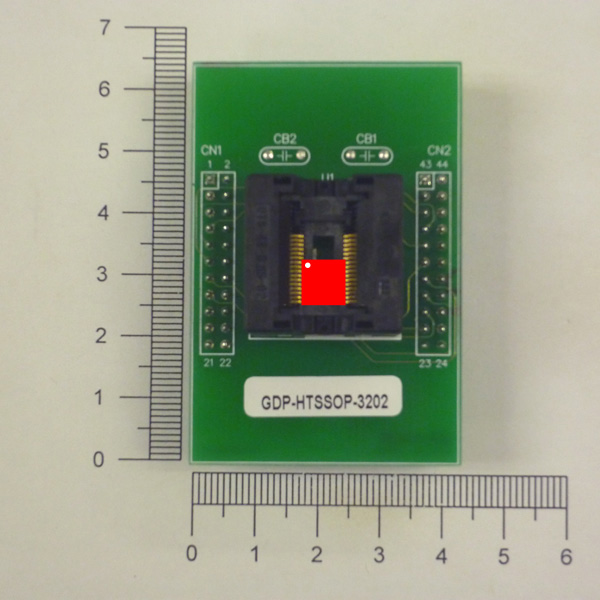

GDP-HTSSOP-3202
32 pin HTSSOP (Body Width 6.1mm, Pitch 0.65mm) adapter for NEC uPD78F0743
Open-Top
Socket
GDP-LQFP-4801
48 pin LQFP (Body Size 7mm x 7mm, Tip To Tip Size 9mm x 9mm, Thickness 1mm, Pitch 0.5mm) adapter for MEGAWIN MG82FE564A
Clam-Shell
Socket
GDP-LQFP-4802
48 pin LQFP (Body Size 7mm x 7mm, Tip To Tip Size 9mm x 9mm, Thickness 1mm, Pitch 0.5mm) adapter for ILITEK M2VQN000
Clam-Shell
Socket
GDP-LQFP-4803
48 pin LQFP (Body Size 7mm x 7mm, Tip To Tip Size 9mm x 9mm, Thickness 1mm, Pitch 0.5mm) adapter for MEGAWIN MG84FG516AD48
Clam-Shell
Socket
GDP-MSOP-0801
8 pin MSOP (Body Width 3mm, Tip To Tip Width 4.9mm, Pitch 0.65mm) adapter for Microchip 24AA32A/24LC32A
Clam-Shell
Socket
GDP-PLCC-2801
28 pin PLCC (Pitch 1.27mm) adapter for Philips 89LPC932
Clam-Shell
Socket
GDP-PLCC-4401
44 pin PLCC (Pitch 1.27mm) adapter for Motorola 68HC705C8(A) / Microchip PIC16C64(65)(67)(74)(77)(F74)(F77)(F87x)(18F4x2)(18F4x8)
Open-Top
Socket
GDP-PLCC-4401C
44 pin PLCC (Pitch 1.27mm) adapter for Motorola 68HC705C8(A) / Microchip PIC16C64(65)(67)(74)(77)(F74)(F77)(F87x)(18F4x2)(18F4x8)
Clam-Shell
Socket
GDP-PLCC-4402
44 pin PLCC (Pitch 1.27mm) adapter for Motorola 68HC705C9A
Open-Top
Socket
GDP-PLCC-4403
44 pin PLCC (Pitch 1.27mm) adapter for Myson MTV230M/312M
Open-Top
Socket
GDP-QFN-0801
8 pin QFN (5mm x 6mm, Thickness 0.85mm, Pitch 1.27mm) adapter for ST M25P80
Open-Top
Socket

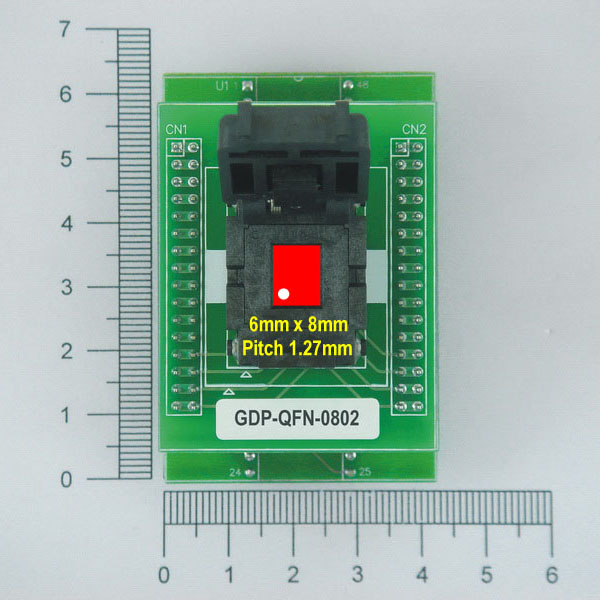

GDP-QFN-0802
8 pin QFN (6mm x 8mm, Thickness 1.0mm, Pitch 1.27mm) adapter for Macronix MX25L6405D
Clam-Shell
Socket
GDP-QFN-0803
8 pin QFN (2mm x 3mm, Thickness 0.6mm, Pitch 0.5mm) adapter for Macronix MX25L1005
Clam-Shell
Socket
GDP-QFN-0804
8 pin QFN (4mm x 4mm, Thickness 0.6mm, Pitch 0.8mm) adapter for Macronix MX25L4005A/8005/1605D/3205D
Open-Top
Socket
GDP-QFN-0805
8 pin QFN (5mm x 6mm, Thickness 0.85mm, Pitch 1.27mm) adapter for Atmel AT45DB011D/021D/041D/081D/161D/321D
Open-Top
Socket
GDP-QFN-0806
8 pin QFN (6mm x 8mm, Thickness 1.0mm, Pitch 1.27mm) adapter for Atmel AT45DB081B/161B/321D/642D
Clam-Shell
Socket
GDP-QFN-0807
8 pin QFN (2mm x 3mm, Thickness 0.6mm, Pitch 0.5mm) adapter for Atmel AT24C32A / Giantec GT93C66
Clam-Shell
Socket
GDP-QFN-0808
8 pin QFN (5mm x 6mm, Thickness 0.85mm, Pitch 1.27mm) adapter for Microchip PIC12F629/675
Open-Top
Socket
GDP-QFN-0809
8 pin QFN (3mm x 4mm, Thickness 0.55mm, Pitch 0.8mm) adapter for Micron M25P16
Clam-Shell
Socket
GDP-QFN-1602
16 pin QFN (4mm x 4mm, Pitch 0.65mm) adapter for Microchip PIC16LF1824T-I/ML
Clam-Shell
Socket
GDP-QFN-2001
20 pin QFN (4mm x 4mm, Thickness 0.9mm, Pitch 0.5mm) adapter for Microchip PIC16F1508-I/ML
Clam-Shell
Socket
GDP-QFN-3201
32 pin QFN (5mm x 5mm, Pitch 0.5mm) adapter for Atmel ATmega48/88/168(V)
Clam-Shell
Socket
GDP-QFN-4001
40 pin QFN (6mm x 6mm, Pitch 0.5mm) adapter for TI CC253x / CC254x
Open-Top
Socket
GDP-QFN-4801
48 (44) pin QFN (7mm x 7mm, Pitch 0.5mm) adapter for Atmel ATmega16(L)/164P/324P/644P
Clam-Shell
Socket
GDP-SOIC-1601
16 pin SOIC (Body Width 150mil, Pitch 1.27mm) adapter for Microchip PIC12F508(509)(510)(629)(675) / Weltrend WT6702F(6703F)
Clam-Shell
Socket
GDP-SOIC-1604
16 pin SOIC (Body Width 150mil, Pitch 1.27mm) adapter for ST M25Pxx
Clam-Shell
Socket
GDP-SOIC-1604/O
16 pin SOIC (Body Width 150mil, Pitch 1.27mm) adapter for ST M25Pxx
Open-Top
Socket
GDP-SOIC-1605
16 pin SOIC (Body Width 150mil, Pitch 1.27mm) adapter for Microchip 93Cxx / Atmel AT24Cxx
Clam-Shell
Socket
GDP-SOIC-1605/O
16 pin SOIC (Body Width 150mil, Pitch 1.27mm) adapter for Microchip 93Cxx / Atmel AT24Cxx
Open-Top
Socket
GDP-SOIC-1606
16 pin SOIC (Body Width 150mil, Pitch 1.27mm) adapter for Atmel AT45DB011D/021D/041D/081D
Clam-Shell
Socket
GDP-SOIC-1731
16 pin SOIC (Body Width 173mil, Pitch 1.27mm) adapter for Microchip 93Cxx / Atmel AT24Cxx
Open-Top
Socket
GDP-SOIC-2003
20 pin SOIC (Body Width 200mil, Pitch 1.27mm) adapter for ST M25Pxx
Clam-Shell
Socket
GDP-SOIC-2003/O
20 pin SOIC (Body Width 200mil, Pitch 1.27mm) adapter for ST M25Pxx
Open-Top
Socket
GDP-SOIC-2004
20 pin SOIC (Body Width 200mil, Pitch 1.27mm) adapter for Freescale MC68HC908QT1/QT2/QT4
Clam-Shell
Socket
GDP-SOIC-2005
20 pin SOIC (Body Width 200mil, Pitch 1.27mm) adapter for Microchip 93Cxx / Atmel AT24Cxx
Clam-Shell
Socket
GDP-SOIC-2005/O
20 pin SOIC (Body Width 200mil, Pitch 1.27mm) adapter for Microchip 93Cxx / Atmel AT24Cxx
Open-Top
Socket
GDP-SOIC-2006
20 pin SOIC (Body Width 200mil, Pitch 1.27mm) adapter for Atmel AT45DB011D(B)/021D(B)/041D(B)/081D/161D/321D
Clam-Shell
Socket
GDP-SOIC-2801
28 pin SOIC (Body Width 300mil, Pitch 1.27mm) adapter for ST M25Pxx
Clam-Shell
Socket
GDP-SOIC-2802
28 pin SOIC (Body Width 300mil, Pitch 1.27mm) adapter for SyncMOS SM894051
Clam-Shell
Socket
GDP-SOIC-2803
28 pin SOIC (Body Width 300mil, Pitch 1.27mm) adapter for Freescale MC68HC908QY1/QY2/QY4
Clam-Shell
Socket
GDP-SOIC-2804
28 pin SOIC (Body Width 300mil, Pitch 1.27mm) adapter for Freescale MC68HC908KX2
Clam-Shell
Socket
GDP-SOIC-2805
28 pin SOIC (Body Width 300mil, Pitch 1.27mm) adapter for Weltrend WT6703F-SG240WT
Clam-Shell
Socket
GDP-SOIC-2806
28 pin SOIC (Body Width 300mil, Pitch 1.27mm) adapter for SyncMos SM39R08(12)(16)A2
Clam-Shell
Socket
GDP-SOT-0601
6 pin SOT-23 (Body Size 2.9mm x 1.6mm, Pitch 0.95mm) adapter for Microchip PIC10F202
Clam-Shell
Socket
GDP-SSOP-2801
28 pin SSOP (Body Width 150mil, Pitch 0.635mm) adapter for Weltrend WT6702F/6703F
Open-Top
Socket
GDP-SSOP-2802
28 pin SSOP (Body Width 200mil, Pitch 0.65mm) adapter for Nuvoton N79E824A / Microchip PIC16F690
Open-Top
Socket
GDP-TQFP-3201
32 pin TQFP (Body Size 7mm x 7mm, Pitch 0.8mm) adapter for Atmel ATmega8/48/88/168
Clam-Shell
Socket
GDP-TQFP-3203
32 pin TQFP (Body Size 7mm x 7mm, Pitch 0.8mm) adapter for ST STM8S103K3T6C
Clam-Shell
Socket
GDP-TQFP-4401
44 pin TQFP (Body Size 10mm x 10mm, Pitch 0.8mm) adapter for Motorola 68HC705C8(A44) / Atmel ATmega16x(32x)(64x)
Clam-Shell
Socket
GDP-TQFP-4402
44 pin TQFP (Body Size 10mm x 10mm, Pitch 0.8mm) adapter for Microchip PIC18F4220/4221/4320/4321/4x1x
Clam-Shell
Socket
GDP-TQFP-4403
44 pin TQFP (Body Size 10mm x 10mm, Pitch 0.8mm) adapter for Atmel AT89C51AC2
Clam-Shell
Socket
GDP-TQFP-4404
44 pin TQFP (Body Size 10mm x 10mm, Pitch 0.8mm) adapter for Weltrend WT61P7/P8
Clam-Shell
Socket
GDP-TSOP-2801
28 pin TSOP (8mm x 13.4mm, Pitch 0.55mm) adapter for Atmel AT45DB021B/041B/081B/161B
Open-Top
Socket
GDP-TSOP-2802
28 pin TSOP (8mm x 13.4mm, Pitch 0.55mm) adapter for Atmel AT45DB021B/041B/081B/161B/161D/321D/642D
Open-Top
Socket
GDP-TSOP-3201
32 pin TSOP (8mm x 20mm, Pitch 0.5mm) adapter for Atmel AT45DB321B
Open-Top
Socket
GDP-TSSOP-1601
16 pin TSSOP (Body Width 173mil, Pitch 0.65mm) adapter for Microchip 24LC512
Clam-Shell
Socket
GDP-TSSOP-1602
16 pin TSSOP (Body Width 173mil, Pitch 0.65mm) adapter for Microchip 25LC080
Clam-Shell
Socket
GDP-TSSOP-1603
16 pin TSSOP (Body Width 173mil, Pitch 0.65mm) adapter for Macronix MX25L512E
Clam-Shell
Socket
GDP-TSSOP-2801
28 pin TSSOP (Body Width 173mil, Pitch 0.65mm) adapter for Philips 89LPC932
Open-Top
Socket
GDP-TSSOP-2802
28 pin TSSOP (Body Width 173mil, Pitch 0.65mm) adapter for Atmel AT93Cxx / Catalyst CAT93Cxx
Open-Top
Socket
GDP-TSSOP-2803
28 pin TSSOP (Body Width 173mil, Pitch 0.65mm) adapter for Nuvoton N79E81xA / N79E84xA
Open-Top
Socket
QFN-4444-01
44 pin QFN (8mm x 8mm, Pitch 0.65mm) adapter for Microchip PIC16F747(777)(884)(887) / PIC18F4220(4320)
Clam-Shell
Socket
QFN-6432-01
64 pin QFN (9mm x 9mm, Pitch 0.5mm) adapter for Atmel ATmega128(169) / AT90USB1286(1287)
Clam-Shell
Socket

ALTERA EPM Series
P/N
Description / Socket Type
Support List
SDP-5192-84
84 pin PLCC (Pitch 1.27mm) adapter for Altera EPM5192/A
Open-Top
Socket
SDP-7064-100Q
100 pin PQFP (Body Size 14mm x 20mm, Pitch 0.65mm) adapter for Altera EPM7064
Clam-Shell
Socket
SDP-7064-100TQ
100 pin TQFP (Body Size 14mm x 14mm, Tip To Tip Size 16mm x 16mm, Pitch 0.5mm) adapter for Altera EPM7064/7096
Clam-Shell
Socket
SDP-7064-68
68 pin PLCC (Pitch 1.27mm) adapter for Altera EPM7064/7096
Open-Top
Socket
SDP-7064-84
84 pin PLCC (Pitch 1.27mm) adapter for Altera EPM7064/7096
Open-Top
Socket
SDP-7096-100Q
100 pin PQFP (Body Size 14mm x 20mm, Pitch 0.65mm) adapter for Altera EPM7096
Clam-Shell
Socket
SDP-7096-100TQ
100 pin TQFP (Body Size 14mm x 14mm, Tip To Tip Size 16mm x 16mm, Pitch 0.5mm) adapter for Altera EPM7096
Clam-Shell
Socket
SDP-7128-100Q
100 pin PQFP (Body Size 14mm x 20mm, Pitch 0.65mm) adapter for Altera EPM7128/E
Clam-Shell
Socket
SDP-7128-100TQ
100 pin TQFP (Body Size 14mm x 14mm, Tip To Tip Size 16mm x 16mm, Pitch 0.5mm) adapter for Altera EPM7128/E
Clam-Shell
Socket
SDP-7128-84
84 pin PLCC (Pitch 1.27mm) adapter for Altera EPM7128/E
Open-Top
Socket
SDP-7160-100Q
100 pin PQFP (Body Size 14mm x 20mm, Pitch 0.65mm) adapter for Altera EPM7160/E
Clam-Shell
Socket
SDP-7160-100TQ
100 pin TQFP (Body Size 14mm x 14mm, Tip To Tip Size 16mm x 16mm, Pitch 0.5mm) adapter for Altera EPM7160/E
Clam-Shell
Socket
SDP-7160-84
84 pin PLCC (Pitch 1.27mm) adapter for Altera EPM7160/E
Open-Top
Socket

AMD MACH Series
P/N
Description / Socket Type
Support List
SDP-M120-68
68 pin PLCC (Pitch 1.27mm) adapter for AMD MACH 12x/22x
Open-Top
Socket
SDP-M130-84
84 pin PLCC (Pitch 1.27mm) adapter for AMD MACH 13x/23x/435 and M4/128
Open-Top
Socket
SDP-M131-100Q
100 pin PQFP (Body Size 14mm x 20mm, Pitch 0.65mm) adapter for AMD MACH 131/231SP
Clam-Shell
Socket
SDP-M131-100TQ
100 pin TQFP (Body Size 14mm x 14mm, Tip To Tip Size 16mm x 16mm, Pitch 0.5mm) adapter for AMD MACH 131/231SP
Clam-Shell
Socket

LATTICE LSI Series
P/N
Description / Socket Type
Support List
SDP-1024-68
68 pin PLCC (Pitch 1.27mm) adapter for Lattice PLSI1024
Open-Top
Socket
SDP-1032-84
84 pin PLCC (Pitch 1.27mm) adapter for Lattice PLSI1032/2064
Open-Top
Socket

XILINX EPLD Family
P/N
Description / Socket Type
Support List
SDP-95108-100Q
100 pin PQFP (Body Size 14mm x 20mm, Pitch 0.65mm) adapter for Xilinx XC95108
Clam-Shell
Socket
SDP-95108-100TQ
100 pin TQFP (Body Size 14mm x 14mm, Tip To Tip Size 16mm x 16mm, Pitch 0.5mm) adapter for Xilinx XC95108
Clam-Shell
Socket
SDP-95108-84
84 pin PLCC (Pitch 1.27mm) adapter for Xilinx XC95108
Open-Top
Socket
SDP-9572-84
84 pin PLCC (Pitch 1.27mm) adapter for Xilinx XC9572
Open-Top
Socket

Single Chips Microprocessor
P/N
Description / Socket Type
Support List
SDP-11F1-68
68 pin PLCC (Pitch 1.27mm) adapter for Motorola 68HC11F1
Open-Top
Socket
SDP-11K1-84
84 pin PLCC (Pitch 1.27mm) adapter for Motorola XC68HC11K1/K4
Open-Top
Socket
SDP-11L6-68
68 pin PLCC (Pitch 1.27mm) adapter for Motorola MC68HC711L6
Open-Top
Socket
SDP-18J01-64TQ
64 pin TQFP (Body Size 10mm x 10mm, Pitch 0.5mm) adapter for Microchip PIC18F67J60
Clam-Shell
Socket
SDP-196J-68
68 pin PLCC (Pitch 1.27mm) adapter for Intel 87C196KR/KQ/JR
Open-Top
Socket
SDP-196K-68
68 pin PLCC (Pitch 1.27mm) adapter for Intel 87C196KB/KD/KC
Open-Top
Socket
SDP-320E-68
68 pin PLCC (Pitch 1.27mm) adapter for TI TMS320E25
Open-Top
Socket
SDP-3224-100Q
100 pin PQFP (Body Size 14mm x 20mm, Pitch 0.65mm) adapter for ST STV0680
Clam-Shell
Socket
SDP-51RE2-44
44 pin PLCC (Pitch 1.27mm) adapter for Atmel AT89C51RE2
Open-Top
Socket
SDP-51RE2-44TQ
44 pin TQFP (Body Size 10mm x 10mm, Pitch 0.8mm) adapter for Atmel AT89C51RE2
Clam-Shell
Socket
SDP-6811-52B
52 pin PLCC (Pitch 1.27mm) adapter for Motorola MC68HC11A1/E9/E1/E2, MC68HC711E9/E20
Open-Top
Socket
SDP-705B-52
52 pin PLCC (Pitch 1.27mm) adapter for Motorola 68705B5/B16/B32
Open-Top
Socket
SDP-705X-64Q
64 pin QFP (Body Size 14mm x 14mm, Pitch 0.8mm) adapter for Motorola 68HC705X32
Clam-Shell
Socket
SDP-7552-68
68 pin PLCC (Pitch 1.27mm) adapter for Philips 87C552
Open-Top
Socket
SDP-7592-68
68 pin PLCC (Pitch 1.27mm) adapter for Philips 87C592
Open-Top
Socket
SDP-908AS-52
52 pin PLCC (Pitch 1.27mm) adapter for Motorola 68HC908AS
Open-Top
Socket
SDP-908AZ-64Q
64 pin QFP (Body Size 14mm x 14mm, Pitch 0.8mm) adapter for Motorola 68HC908AZ60
Clam-Shell
Socket
SDP-96MH-84
84 pin PLCC (Pitch 1.27mm) adapter for Intel 87C196MH/MC
Open-Top
Socket
SDP-AD816-52Q
52 pin QFP (Body Size 10mm x 10mm, Pitch 0.65mm) adapter for Analog device AduC812/816 MCU
Clam-Shell
Socket
SDP-AT128-64TQ
64 pin TQFP (Body Size 14mm x 14mm, Pitch 0.8mm) adapter for Atmel ATmega64/128
Open-Top
Socket
SDP-AT48-32TQ
32 pin TQFP (Body Size 7mm x 7mm, Pitch 0.8mm) adapter for Atmel ATmega48V
Clam-Shell
Socket
SDP-AT91S-64TQ
64 pin TQFP (Body Size 10mm x 10mm, Pitch 0.5mm) adapter for Atmel AT91SAM7S64/128/256
Clam-Shell
Socket
SDP-AX110-128LQ
128 pin LQFP (Body Size 14mm x 14mm, Pitch 0.4mm) adapter for ASIX AX11015
Clam-Shell
Socket
SDP-C508-64Q
64 pin QFP (Body Size 14mm x 14mm, Pitch 0.8mm) adapter for Infineon C508-4E
Clam-Shell
Socket
SDP-C515-80Q
80 pin QFP (Body Size 14mm x 14mm, Pitch 0.65mm) adapter for Siemens C515/C505L
Clam-Shell
Socket
SDP-C530-52
52 pin PLCC (Pitch 1.27mm) adapter for Dallas 87C530
Open-Top
Socket
SDP-C752-68
68 pin PLCC (Pitch 1.27mm) adapter for Microchip PIC 17C752/6
Open-Top
Socket
SDP-C923-64TQ
64 pin TQFP (Body Size 10mm x 10mm, Pitch 0.5mm) adapter for Microchip PIC 16C923/4
Clam-Shell
Socket
SDP-C923-68
68 pin PLCC (Pitch 1.27mm) adapter for Microchip PIC 16C923/924
Open-Top
Socket
SDP-I6350-48LQ
48 pin LQFP (Body Size 7mm x 7mm, Tip To Tip Size 9mm x 9mm, Thickness 1mm, Pitch 0.5mm) adapter for ITE IT6350 / IT8350
Clam-Shell
Socket
SDP-N111X-32QFN
32 pin QFN (7mm x 7mm, Pitch 0.65mm) adapter for NXP LPC1114FHN33/302
Open-Top
Socket
SDP-N11CX-48LQ
48 pin LQFP (Body Size 7mm x 7mm, Tip To Tip Size 9mm x 9mm, Thickness 1mm, Pitch 0.5mm) adapter for NXP LPC11C12/11C14/11C22/11C24
Clam-Shell
Socket
SDP-N176X-100LQ
100 pin TQFP (Body Size 14mm x 14mm, Tip To Tip Size 16mm x 16mm, Pitch 0.5mm) adapter for NXP LPC1763/64/65/66/67/68/69
Clam-Shell
Socket
SDP-N213X-64LQ
64 pin LQFP (Body Size 10mm x 10mm, Pitch 0.5mm) adapter for NXP LPC2131/2132/2134/2136/2138
Clam-Shell
Socket
SDP-PIC18-28SO
28 pin SOIC (Body Width 300mil, Pitch 1.27mm) adapter for Microchip PIC18F24J10
Clam-Shell
Socket
SDP-PIC18X-64TQ
64 pin TQFP (Body Size 10mm x 10mm, Pitch 0.5mm) adapter for Microchip PIC18F6X20 MCU
Clam-Shell
Socket
SDP-R21256-52LQ
52 pin LQFP (Body Size 10mm x 10mm, Pitch 0.65mm) Adapter for Renesas R5F21256SNFP
Clam-Shell
Socket
SDP-RT2120-44
44 pin PLCC (Pitch 1.27mm) adapter for Realtek RTD2120S
Open-Top
Socket
SDP-RT2120-48LQ
48 pin LQFP (Body Size 7mm x 7mm, Tip To Tip Size 9mm x 9mm, Thickness 1mm, Pitch 0.5mm) adapter for Realtek RTD2120L
Clam-Shell
Socket
SDP-SDA555-52SD
52 pin Shrink DIP (Pitch 1.778mm) adapter for Micronas SDA555XFL
DIP
Socket
SDP-WT802-48LQ
48 pin LQFP (Body Size 7mm x 7mm, Tip To Tip Size 9mm x 9mm, Thickness 1mm, Pitch 0.5mm) adapter for Weltrend WT61P802
Clam-Shell
Socket

Flashs
P/N
Description / Socket Type
Support List
GDP-1305-48TSS
48 pin TSSOP (Pitch 0.4mm) adapter for Sharp LRS1305
Open-Top
Socket
GDP-130X-48TSS
48 pin TSSOP (Pitch 0.4mm) adapter for Sharp LRS 1306/1308
Open-Top
Socket
GDP-1611-48TS
48 pin TSOP (12mm x 20mm, Pitch 0.5mm) adapter for Macronix MX29L1611
Open-Top
Socket
GDP-F016-56TS
56 pin TSOP (14mm x 20mm, Pitch 0.5mm) adapter for Intel 28F016(032)SA / SHARP 28F016(032)S3/S5
Open-Top
Socket
GDP-F640-56TS
56 pin TSOP (14mm x 20mm, Pitch 0.5mm) adapter for Intel 28F320(640)J5/J3
Open-Top
Socket
GDP-ST064-48TS
48 pin TSOP (12mm x 20mm, Pitch 0.5mm) adapter for ST M29KW016/032/064
Open-Top
Socket
SDP-1329-64F
64 pin FBGA (8mm x 11mm, Pitch 0.8mm) adapter for Sharp LRS1329/1340/1349/1356
Clam-Shell
Socket
SDP-1331-64F
64 pin FBGA (8mm x 11mm, Pitch 0.8mm) adapter for Sharp LRS1331/1337/1341/1342/ 1357/1358/1362/1363/1364/1365
Clam-Shell
Socket
SDP-1826-64F
64 pin FBGA (8mm x 11mm, Pitch 0.8mm) adapter for Sharp LRS1826 and Atmel AT52BR3244/3248
Clam-Shell
Socket
SDP-1876-64F
64 pin FBGA (8mm x 11mm, Pitch 0.8mm) adapter for Sharp LRS1876
Clam-Shell
Socket
SDP-3204-64F
64 pin FBGA (8mm x 12mm, Pitch 0.8mm) adapter for Intel RD28F1604/3204
Open-Top
Socket
SDP-41DL16-69F
69 pin FBGA (8mm x 11mm, Pitch 0.8mm) adapter for AMD 41DL16xx MCP
Open-Top
Socket
SDP-42DL32-73F
73 pin FBGA (8mm x 11.6mm, Pitch 0.8mm) adapter for AMD 42DL32xx MCP
Open-Top
Socket
SDP-49PDL64-73F
73 pin FBGA (9mm x 13mm, Pitch 0.8mm) adapter for AMD AM49PDL640AG
Open-Top
Socket
SDP-6408-64F
64 pin FBGA (8mm x 14mm, Pitch 0.8mm) adapter for Intel RD28F3208C3B/T, 6408J3A
Open-Top
Socket
SDP-A128M-64EK
64 pin EBGA (11mm x 13mm, Pitch 1.0mm) KaiZhiTong adapter for Spansion S29GL256P10FFI01 (LAA064)
Open-Top
Socket
SDP-A128M-64EP
64 pin EBGA (11mm x 13mm, Pitch 1.0mm) Probe (Pogo-Pin) adapter for Spansion S29GL256P10FFI01 (LAA064)
Open-Top
Socket
SDP-A128M-64ET
64 pin EBGA (11mm x 13mm, Pitch 1.0mm, Ball Size 0.55mm ~ 0.65mm) adapter for AMD 29LV640MH/L, 29LV128MH/L (LAA064)
Open-Top
Socket
SDP-A160-48F
48 pin FBGA (8mm x 9mm, Pitch 0.8mm) adapter for AMD 29LV160
Open-Top
Socket
SDP-A256M-56TS
56 pin TSOP (14mm x 20mm, Pitch 0.5mm) adapter for AMD 29LV256MH/L
Open-Top
Socket
SDP-A320-48F
48 pin FBGA (6mm x 12mm, Pitch 0.8mm) adapter for AMD 29DL32x
Open-Top
Socket
SDP-A320-63F
63 pin FBGA (8mm x 14mm, Pitch 0.8mm) adapter for AMD 29DL32x
Open-Top
Socket
SDP-A640-48F
48 pin FBGA (11mm x 12mm, Pitch 0.8mm) adapter for AMD 29DL640D
Open-Top
Socket
SDP-A642-64EP
64 pin EBGA (11mm x 13mm, Pitch 1.0mm) Probe (Pogo-Pin) adapter for AMD 29LV642D
Open-Top
Socket
SDP-A800-48F
48 pin FBGA (6mm x 9mm, Pitch 0.8mm) adapter for AMD 29LV800
Open-Top
Socket
SDP-AT1614-48F
48 pin FBGA (8mm x 10mm, Pitch 0.8mm) adapter for Atmel AT49BV1614T
Open-Top
Socket
SDP-AT640-64E
64 pin EBGA (9mm x 10mm, Pitch 1.0mm) Probe (Pogo-Pin) adapter for Atmel AT49BV160(320)(640)S/ST
Open-Top
Socket
SDP-D641-52TS/W
52 pin TSOP (Pitch 0.4mm) adapter for Mitsubishi M6MGT321S4TP, M6MGT641S8TP
Open-Top
Socket
SDP-EBGA-001
64 pin EBGA (10mm x 13mm, Pitch 1.0mm) adapter for Intel 28F800(160)(320)F3/C3
Open-Top
Socket
SDP-EBGA-002
64 pin EBGA (10mm x 13mm, Pitch 1.0mm) adapter for Intel 28F320(640)(128)J3A
Open-Top
Socket
SDP-EBGA-003
64 pin EBGA (10mm x 13mm, Pitch 1.0mm) adapter for Intel 28F128J3C
Open-Top
Socket
SDP-EBGA-004
64 pin EBGA (10mm x 15mm, Pitch 1.0mm) adapter for Intel RC28F256J3C
Open-Top
Socket
SDP-F1316-64F
64 pin FBGA (8mm x 11mm, Pitch 0.8mm) adapter for Sharp LRS1306/1316A
Clam-Shell
Socket
SDP-F2108-56F
56 pin FBGA (7mm x 7.2mm, Pitch 0.8mm) adapter for Fujitsu 84VD2108x MCP
Open-Top
Socket
SDP-F2228-56F
56 pin FBGA (7mm x 9mm, Pitch 0.8mm) adapter for Fujitsu MB84VD22280(22290)FE
Open-Top
Socket
SDP-F2238-56F
56 pin FBGA (7mm x 11mm, Pitch 0.8mm) adapter for Fujitsu MB84VD2238x(2239x)EF/J
Open-Top
Socket
SDP-F256-80F
80 pin FBGA (10mm x 14mm, Pitch 0.8mm) adapter for Intel RD28F256(192)(128)SJ3AM
Open-Top
Socket
SDP-F400-56TS
56 pin TSOP (14mm x 20mm, Pitch 0.5mm) adapter for Intel 28F400/28F200
Open-Top
Socket
SDP-F554-96F
96 pin FBGA (9mm x 10mm, Pitch 0.8mm) adapter for Fujitsu MB84VF5F5F4J2
Clam-Shell
Socket
SDP-I320-48U
48 pin uBGA (7.286mm x 10.85mm, Pitch 0.75mm) adapter for Intel 28F320B3/C3, 28F160B3/C3
Open-Top
Socket
SDP-i320-48VF
48 pin VFBGA (6.964mm x 7.286mm, Pitch 0.75mm) adapter for Intel 28F320B3C/C3C, 28F160C3C
Open-Top
Socket
SDP-I512P3-56TS
56 pin TSOP (14mm x 20mm, Pitch 0.5mm) adapter for Intel TE28F256Pxxx
Open-Top
Socket
SDP-i640-48VF
48 pin VFBGA (7.7mm x 9mm, Pitch 0.75mm) adapter for Intel GE28F640C3
Open-Top
Socket
SDP-M157-52TS/W
52 pin TSOP (Pitch 0.4mm) adapter for Mitsubishi M5M29KE-157MT
Open-Top
Socket
SDP-MT322-48U
48 pin uBGA (7mm x 10mm, Pitch 0.75mm) adapter for Micron MT28F322P3FJ stack flash
Open-Top
Socket
SDP-MX128D-64E
64 pin EBGA (10mm x 13mm, Pitch 1.0mm) adapter for Macronix M29LA128DB/DT & Numonyx M29W640G(S)B/T/H/L (FAA064)
Open-Top
Socket
SDP-S064J-56F
56 pin FBGA (7mm x 9mm, Pitch 0.8mm) adapter for Spansion S71PL032J/064J
Open-Top
Socket
SDP-S127J-56TS
56 pin TSOP (14mm x 20mm, Pitch 0.5mm) adapter for Spansion 29PL127J
Open-Top
Socket
SDP-S160-48U
48 pin uBGA (8mm x 8mm, Pitch 0.75mm) adapter for Sharp 28F160BJHG-BTL90
Clam-Shell
Socket
SDP-S256S-64E
64 pin EBGA (9mm x 9mm, Pitch 1.0mm) adapter for Spansion S29GL128(256)S (LAE064)
Open-Top
Socket
SDP-SL3208-64F
64 pin FBGA (8mm x 10mm, Pitch 0.8mm) adapter for SILICON7 SV4F16xx/32xx
Open-Top
Socket
SDP-SSK5A3-56F
56 pin FBGA (8mm x 11mm, Pitch 0.8mm) adapter for Samsung K5A3x80YT/B
Open-Top
Socket
SDP-SST1621-56F
56 pin FBGA (8mm x 10mm, Pitch 0.8mm) adapter for SST 34HF1621/1601
Open-Top
Socket
SDP-SST800-48F
48 pin FBGA (6mm x 8mm, Pitch 0.8mm) adapter for SST 39VF800/160
Open-Top
Socket
SDP-ST064-56TS
56 pin TSOP (14mm x 20mm, Pitch 0.5mm) adapter for ST 58LW064A
Open-Top
Socket
SDP-ST160-48VF
48 pin VFBGA (6.37mm x 6.39mm, Pitch 0.75mm) adapter for ST M28W160CT/B
Open-Top
Socket
SDP-ST320-48U
48 pin uBGA (6.39mm x 10.5mm, Pitch 0.75mm) adapter for ST 28W320CT
Open-Top
Socket
SDP-ST320-48VF
48 pin VFBGA (6.37mm x 6.39mm, Pitch 0.75mm) adapter for ST M28W320CT/B
Open-Top
Socket
SDP-TH1282-48F
48 pin FBGA (7mm x 10mm, Pitch 0.8mm) adapter for Toshiba TC581282AXB,58FYM6
Open-Top
Socket
SDP-TH2580-56F
56 pin FBGA (9mm x 12mm, Pitch 0.8mm) adapter for Toshiba TH50VSF2580/1AASB
Open-Top
Socket
SDP-TH5782-60F
60 pin FBGA (9mm x 12mm, Pitch 0.8mm) adapter for Toshiba TH50VPF5782/83AASB
Open-Top
Socket


Information Request Form

Name
Title
Company
Address
E-mail
Phone
FAX


For more information, please contact:

Advantech Equipment Corporation
Fl. 7, No. 98, Ming-Chuan Road, Shing-Tien City, Taipei, Taiwan, R.O.C.
Tel: 886-2-2218-2325
FAX: 886-2-2218-2435
