Adapter for LabTool-T400 Series
P/N
Description / Socket Type
Package Size (BGA)
TM-A160-48F

48 pin FBGA (8mm x 9mm, Pitch 0.8mm) adapter modules for AMD Am29LV160B

Open-Top
Socket

8mm x 9mm
Pitch=0.8mm

TM-A3208-56F

56 pin FBGA (8mm x 11.6mm, Pitch 0.8mm) adapter modules for AMD 42DL32xx MCP (TLA064,TLA073)

Open-Top
Socket

8mm x 11.6mm
Pitch=0.8mm

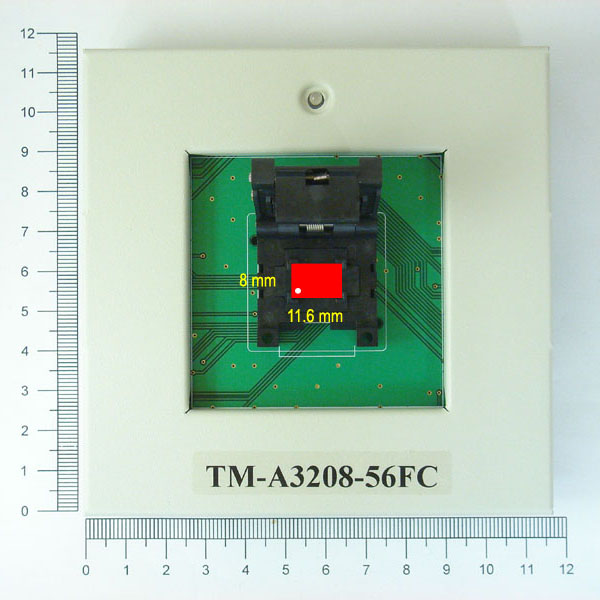

TM-A3208-56FC

56 pin FBGA (8mm x 11.6mm, Pitch 0.8mm) adapter modules for AMD 42DL32xx MCP (TLA064,TLA073)

Clam-Shell
Socket

8mm x 11.6mm
Pitch=0.8mm

TM-A640-48F

48 pin FBGA (11mm x 12mm, Pitch 0.8mm) adapter modules for AMD 29DL640D

Open-Top
Socket

11mm x 12mm
Pitch=0.8mm

TM-ALKS10-356B

356 (19) pin BGA (13mm x 17mm, Pitch 0.6mm) adapter modules for Altek S10MCP

Clam-Shell
Socket

13mm x 17mm
Pitch=0.6mm

TM-AT1614-48F

48 pin FBGA (8mm x 10mm, Pitch 0.8mm) adapter modules for SST SST39VF6401(6402) / Atmel AT49BV1614(T)

Open-Top
Socket

8mm x 10mm
Pitch=0.8mm

TM-CT256-104FS

104 pin FSBGA (9mm x 9mm, Pitch 0.65mm) adapter modules for Hynix H8YCZ0CI0MAR

Open-Top
Socket

9mm x 9mm
Pitch=0.65mm

TM-CT256-120F

120 pin FBGA (10mm x 13mm, Pitch 0.8mm) adapter modules for CHIPSIP CT47568126A-G4 / CT48568126A-G4 / ATO MST5D08G16GPH

Open-Top
Socket

10mm x 13mm
Pitch=0.8mm

TM-F100-70SS

70 pin SSOP (Body Width 12.8mm, Pitch 0.8mm) adapter modules for Fujitsu MSP55LV100

Clam-Shell
Socket



TM-F2228-56F

56 pin FBGA (7mm x 9mm, Pitch 0.8mm) adapter modules for Fujitsu MB84VD22280F

Open-Top
Socket

7mm x 9mm
Pitch=0.8mm

TM-F512-70SS

70 pin SSOP (Body Width 12.8mm, Pitch 0.8mm) adapter modules for Fujitsu MSP55LV512

Clam-Shell
Socket



TM-FM2G-162WF

162 pin WFBGA (8mm x 10.5mm, Pitch 0.5mm) adapter modules for ESMT FM6BD2G1GA-2.5BLCGE

Open-Top
Socket

8mm x 10.5mm
Pitch=0.5mm

TM-FM4G-162WF

162 pin WFBGA (11.5mm x 13mm, Pitch 0.5mm) adapter modules for ESMT FM68D4G2GA-2.5BLGE

Open-Top
Socket

11.5mm x 13mm
Pitch=0.5mm

TM-FP1216-48F

48 pin FBGA (9mm x 9mm, Pitch 0.8mm) adapter modules for Front Power NAND1208U1-CKC

Open-Top
Socket

9mm x 9mm
Pitch=0.8mm

TM-GD5F-8SON2

8 pin WSON (6mm x 8mm, Thickness 1.0mm, Pitch 1.27mm) adapter modules for SPI NAND Flash

Clam-Shell
Socket



TM-H8AC-137F

137 pin FBGA (10.5mm x 13mm, Pitch 0.8mm) adapter modules for Hynix H8ACS0SJ0MCP / HYG0SSJ0MF3P

Open-Top
Socket

10.5mm x 13mm
Pitch=0.8mm

TM-H8BC-149F

149 pin FBGA (10mm x 14mm, Pitch 0.8mm) adapter modules for Hynix H8BCS0S(Q)I0MAP

Open-Top
Socket

10mm x 14mm
Pitch=0.8mm

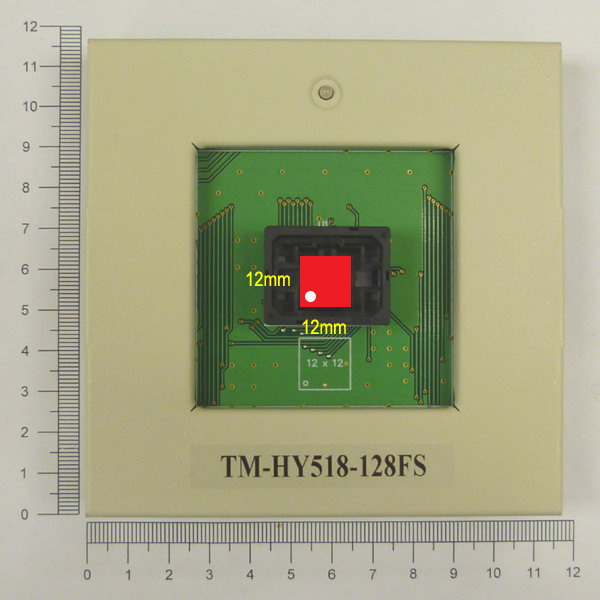

TM-HY518-128FS

128 pin FSBGA (12mm x 12mm, Pitch 0.65mm) adapter modules for Altek AL6210-3ADG (Hynix H27S518S2C)

Open-Top
Socket

12mm x 12mm
Pitch=0.65mm

TM-I128-56VF

56 pin VFBGA (7.52mm x 13.42mm, Pitch 0.75mm) adapter modules for Intel GE(PH)28F128W18(30)BD(TD)

Open-Top
Socket

7.52mm x 13.42mm
Pitch=0.75mm

TM-I128-64E

64 pin EBGA (10mm x 13mm, Pitch 1.0mm) adapter modules for Intel RC28F128K3/J3

Open-Top
Socket

10mm x 13mm
Pitch=1.0mm

TM-I128W-56VF

56 pin VFBGA (12mm x 12.5mm, Pitch 0.75mm) adapter modules for Intel GE28F128W18(30)T(B)

Open-Top
Socket

12mm x 12.5mm
Pitch=0.75mm

TM-I256-64E

64 pin EBGA (10mm x 15mm, Pitch 1.0mm) adapter modules for Intel 28F256J3C

Open-Top
Socket

10mm x 15mm
Pitch=1.0mm

TM-I256K-63VF

63 pin VFBGA (9mm x 14.5mm, Pitch 0.75mm) adapter modules for Intel GE28F256K

Open-Top
Socket

9mm x 14.5mm
Pitch=0.75mm

TM-I256L-63VF

63 pin VFBGA (9mm x 11mm, Pitch 0.75mm) adapter modules for Intel GE28F256L

Open-Top
Socket

9mm x 11mm
Pitch=0.75mm

TM-I256P-56TS

56 pin TSOP (14mm x 20mm, Pitch 0.5mm) adapter modules for Intel TE28F256P30BX585QS

Open-Top
Socket



TM-I3204-64F

64 pin FBGA (8mm x 12mm, Pitch 0.8mm) adapter modules for ST M36Wxxxx

Open-Top
Socket

8mm x 12mm
Pitch=0.8mm

TM-I320-48U

48 pin uBGA (7.286mm x 10.85mm, Pitch 0.75mm) adapter modules for Intel GE28F320J3A

Open-Top
Socket

7.286mm x 10.85mm
Pitch=0.75mm

TM-I3340-80F

80 pin FBGA (8mm x 10mm, Pitch 0.8mm) adapter modules for Intel RD38Fxxxx MCP

Open-Top
Socket

8mm x 10mm
Pitch=0.8mm

TM-I3340-80FC

80 pin FBGA (8mm x 10mm, Pitch 0.8mm) adapter modules for Intel RD38Fxxxx MCP

Clam-Shell
Socket

8mm x 10mm
Pitch=0.8mm

TM-I4050-80F

80 pin FBGA (8mm x 11mm, Pitch 0.8mm) adapter modules for Intel RD38F4050

Open-Top
Socket

8mm x 11mm
Pitch=0.8mm

TM-I4050-80F-Y

80 pin FBGA (8mm x 11mm, Pitch 0.8mm) adapter modules for Intel RD38F4050 (YAMAICHI Socket)

Open-Top
Socket

8mm x 11mm
Pitch=0.8mm

TM-I4400-137FS

137 pin FSBGA (8mm x 11mm, Pitch 0.65mm) adapter modules for Intel LZ48F4400

Open-Top
Socket

8mm x 11mm
Pitch=0.65mm

TM-I4470-137FS

137 pin FSBGA (11mm x 13mm, Pitch 0.65mm) adapter modules for Intel PF38F4470VVUB

Open-Top
Socket

11mm x 13mm
Pitch=0.65mm

TM-I5060M-107F

107 pin FBGA (8mm x 11mm, Pitch 0.8mm) adapter modules for Intel PF38F5060M0Y0

Open-Top
Socket

8mm x 11mm
Pitch=0.8mm

TM-I640-56VF

56 pin VFBGA (7.7mm x 9mm, Pitch 0.75mm) adapter modules for Intel 28F640W, 28F640K

Open-Top
Socket

7.7mm x 9mm
Pitch=0.75mm

TM-I6408-64F

64 pin FBGA (8mm x 14mm, Pitch 0.8mm) adapter modules for Intel RD28F6408

Open-Top
Socket

8mm x 14mm
Pitch=0.8mm

TM-I640P-64E

64 pin EBGA (8mm x 10mm, Pitch 1.0mm) adapter modules for Intel PC28F640/128 P33B85

Open-Top
Socket

8mm x 10mm
Pitch=1.0mm

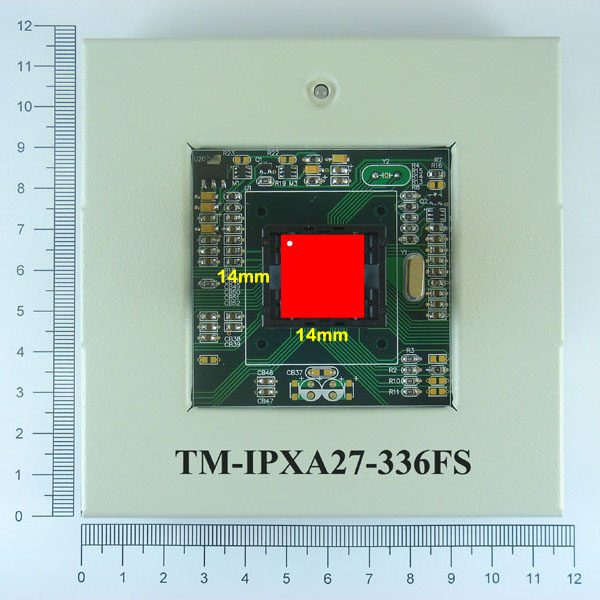

TM-IPXA27-336FS

336 pin FSBGA (14mm x 14mm, Pitch 0.65mm) adapter modules for Intel PXA27xx

Open-Top
Socket

14mm x 14mm
Pitch=0.65mm

TM-MT2G16-107F

107 pin FBGA (10.5mm x 13mm, Pitch 0.8mm) adapter modules for Micron MT29C2G24MAKJAJC/MT29C1G56MADEAJC-6IT

Open-Top
Socket

10.5mm x 13mm
Pitch=0.8mm

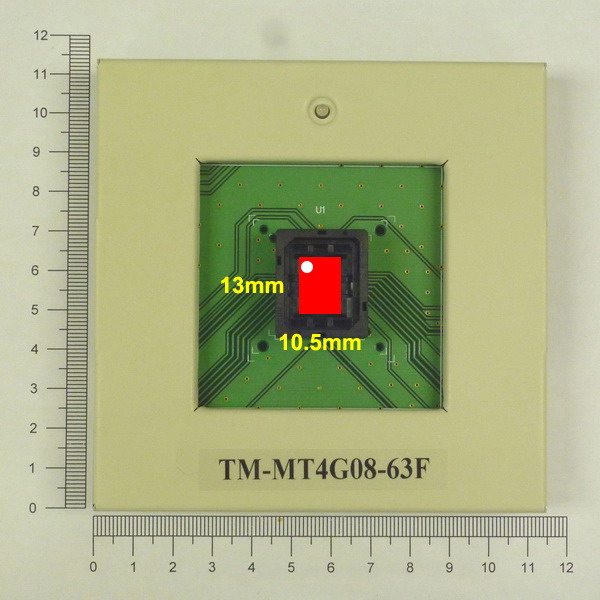

TM-MT4G08-63F

63 pin FBGA (10.5mm x 13mm, Pitch 0.8mm) adapter modules for Micron MT29F4G08(16)AA(B)C

Open-Top
Socket

10.5mm x 13mm
Pitch=0.8mm

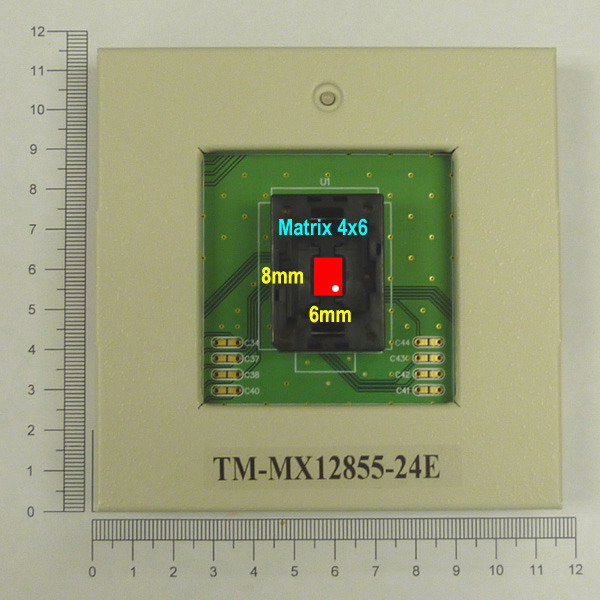

TM-MX12855-24E

24 pin EBGA (6mm x 8mm, Pitch 1.0mm, Matrix 4x6 ) adapter for Macronix MX25L6455E/12855E (WELLS)

Open-Top
Socket

6mm x 8mm
Pitch=1.0mm

TM-MX12855-24M

24 pin EBGA (6mm x 8mm, Pitch 1.0mm, Matrix 4x6 ) adapter for Macronix MX25L6455E/12855E (MCS)

Open-Top
Socket

6mm x 8mm
Pitch=1.0mm

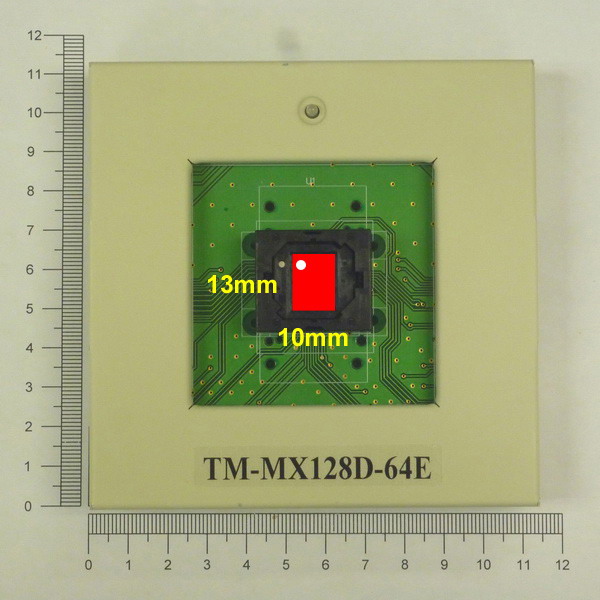

TM-MX128D-64E

64 pin EBGA (10mm x 13mm, Pitch 1.0mm) adapter modules for Macronix M29LA128DB/DT & Numonyx M29W640G(S)B/T/H/L (FAA064)

Open-Top
Socket

10mm x 13mm
Pitch=1.0mm

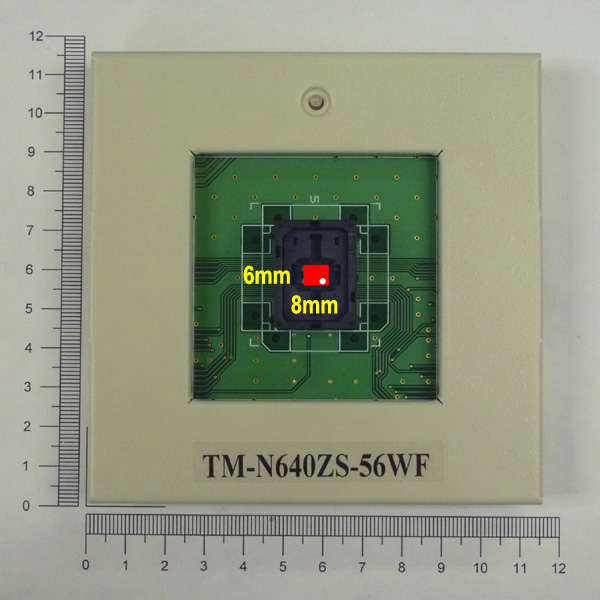

TM-N640ZS-56WF

56 pin WFBGA (6mm x 8mm, Pitch 0.5mm) adapter modules for Numonyx M36W0R6050U4ZS

Open-Top
Socket

6mm x 8mm
Pitch=0.5mm

TM-ONFI31-48TS

48 pin TSOP (12mm x 20mm, Pitch 0.5mm) adapter modules for Nand Flash (ONFI 1.0/2.0/2.1/2.2/2.3a/3.0/3.1)

Open-Top
Socket



TM-ONFI31-H4F

48 (63) pin FBGA (9mm x 11mm, Pitch 0.8mm) adapter modules for Nand Flash (ONFI 1.0/2.0/2.1/2.2/2.3a/3.0/3.1)

Open-Top
Socket

9mm x 11mm
Pitch=0.8mm

TM-ONFI31-HCF

48 (63) pin FBGA (10.5mm x 13mm, Pitch 0.8mm) adapter modules for Nand Flash (ONFI 1.0/2.0/2.1/2.2/2.3a/3.0/3.1)

Open-Top
Socket

10.5mm x 13mm
Pitch=0.8mm

TM-QFN-0801

8 pin QFN (5mm x 6mm, Thickness 0.85mm, Pitch 1.27mm) adapter modules for SPI NOR Flash

Open-Top
Socket

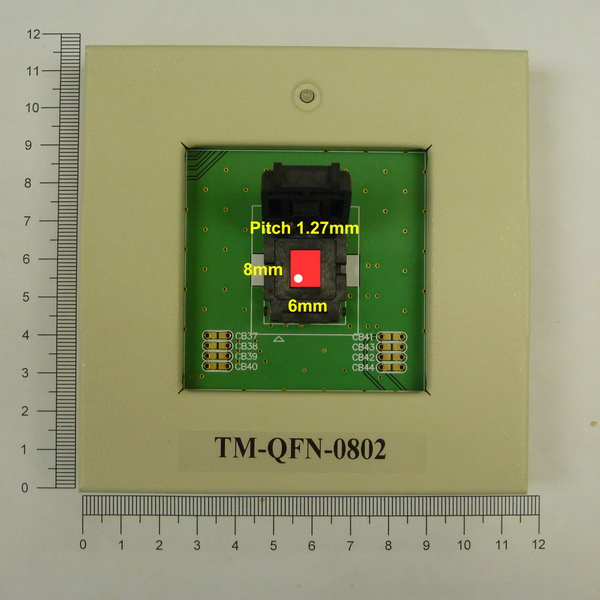

TM-QFN-0802

8 pin QFN (6mm x 8mm, Thickness 1.0mm, Pitch 1.27mm) adapter modules for SPI NOR Flash

Clam-Shell
Socket



TM-QFN-0803

8 pin QFN (2mm x 3mm, Thickness 0.6mm, Pitch 0.5mm) adapter modules for SPI NOR Flash

Clam-Shell
Socket



TM-QFN-0804

8 pin QFN (4mm x 4mm, Thickness 0.6mm, Pitch 0.8mm) adapter modules for SPI NOR Flash

Open-Top
Socket



TM-S064J-56F

56 pin FBGA (7mm x 9mm, Pitch 0.8mm) adapter modules for Spansion S71PL064JAO

Open-Top
Socket

7mm x 9mm
Pitch=0.8mm

TM-S064J-56FC

56 pin FBGA (7mm x 9mm, Pitch 0.8mm) adapter modules for Spansion S71PL064JAO

Clam-Shell
Socket

7mm x 9mm
Pitch=0.8mm

TM-S064N-64E

64 pin EBGA (9mm x 9mm, Pitch 1.0mm) adapter modules for Spansion S29GL032(064)N / S29AL008(016)J / S29GL512(01G)S (LAE064)

Open-Top
Socket

9mm x 9mm
Pitch=1.0mm

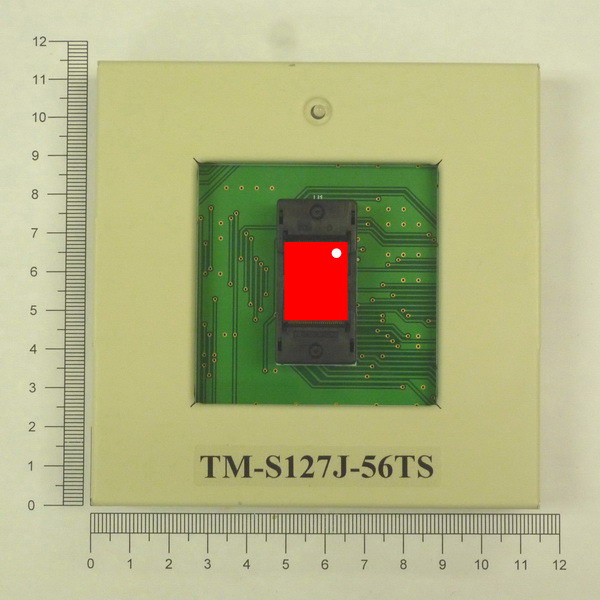

TM-S127J-56TS

56 pin TSOP (14mm x 20mm, Pitch 0.5mm) adapter modules for Spansion S29PL127J/129J

Open-Top
Socket



TM-S128R-68WF

56 (68) pin WFBGA (6.2mm x 7.7mm, Pitch 0.5mm) adapter modules for Spansion S71VS128RC0ZHK200 (NLD056) / EON EN71NS128B0

Open-Top
Socket

6.2mm x 7.7mm
Pitch=0.5mm

TM-S254J-84F

84 pin FBGA (8mm x 11.6mm, Pitch 0.8mm) adapter modules for Spansion S71PL254J

Open-Top
Socket

8mm x 11.6mm
Pitch=0.8mm

TM-S512-64EK

64 pin EBGA (11mm x 13mm, Pitch 1.0mm) KaiZhiTong adapter modules for Spansion S29GL512P10FFCR1 (LAA064)

Open-Top
Socket

11mm x 13mm
Pitch=1.0mm

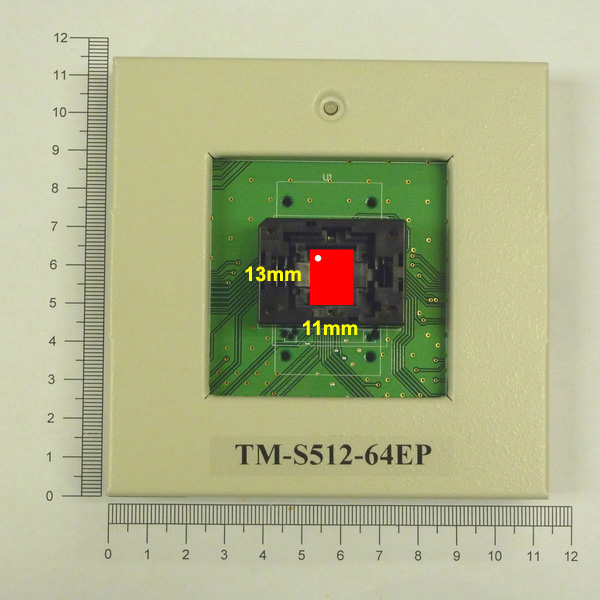

TM-S512-64EP

64 pin EBGA (11mm x 13mm, Pitch 1.0mm) Probe (Pogo-Pin) adapter modules for Spansion S29GL512P10FFCR1 (LAA064)

Open-Top
Socket

11mm x 13mm
Pitch=1.0mm

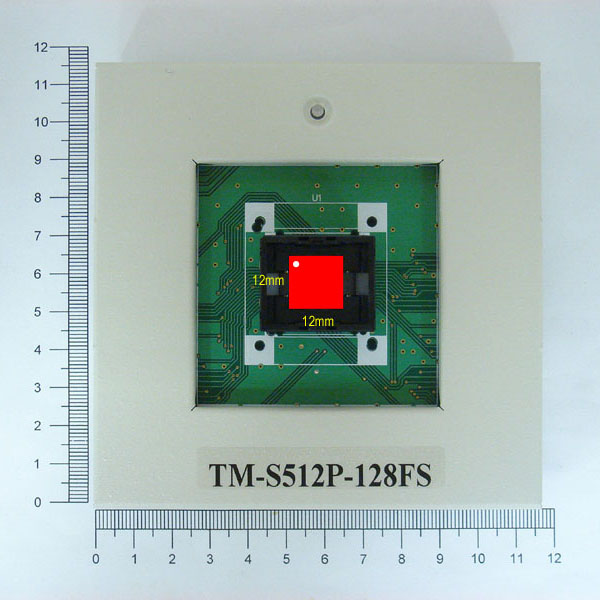

TM-S512P-128FS

128 pin FSBGA (12mm x 12mm, Pitch 0.65mm) adapter modules for Spansion S72NS512PE0KFDGG/0

Open-Top
Socket

12mm x 12mm
Pitch=0.65mm

TM-S512P-133WF

133 pin WFBGA (10mm x 11mm, Pitch 0.5mm) adapter modules for Spansion S72NS512PE0AJGLG

Clam-Shell
Socket

10mm x 11mm
Pitch=0.5mm

TM-SH1826-64F

64 pin FBGA (8mm x 11mm, Pitch 0.8mm) adapter modules for Sharp LRS1826

Clam-Shell
Socket

8mm x 11mm
Pitch=0.8mm

TM-SL3208-64F

64 pin FBGA (8mm x 10mm, Pitch 0.8mm) adapter modules for SILICON7 SV4F16(32)xx / SST SST32HF64A2

Open-Top
Socket

8mm x 10mm
Pitch=0.8mm

TM-SL3208-64FC

64 pin FBGA (8mm x 10mm, Pitch 0.8mm) adapter modules for SILICON7 SV4F16(32)xx / SST SST32HF64A2

Clam-Shell
Socket

8mm x 10mm
Pitch=0.8mm

TM-SOIC-1601

8 pin SOIC (Body Width 150mil, Pitch 1.27mm) adapter modules for Macronix MX25L1605D

Open-Top
Socket



TM-SOIC-2001

8 pin SOIC (Body Width 200mil, Pitch 1.27mm) adapter modules for SST 25VF016B

Open-Top
Socket



TM-SOIC-2801

16 pin SOIC (Body Width 300mil, Pitch 1.27mm) adapter modules for Spansion S25FL128P / ST M25P128 / Macronix MX25L6405D / SST 25VF016B

Open-Top
Socket



TM-SS00J-107F

107 pin FBGA (10.5mm x 13mm, Pitch 0.8mm) adapter modules for Samsung KAG00J007M

Open-Top
Socket

10.5mm x 13mm
Pitch=0.8mm

TM-SS1208-48F

48 pin FBGA (8.5mm x 13mm, Pitch 0.8mm) adapter modules for Samsung K9F128R0B/R0C

Open-Top
Socket

8.5mm x 13mm
Pitch=0.8mm

TM-SS3281-64F

64 pin FBGA (8mm x 11mm, Pitch 0.8mm) adapter modules for Samsung K5A3281CTM

Open-Top
Socket

8mm x 11mm
Pitch=0.8mm

TM-SS5613-137F

137 pin FBGA (10.5mm x 13mm, Pitch 0.8mm) adapter modules for Samsung K5D5613HCM-D090

Open-Top
Socket

10.5mm x 13mm
Pitch=0.8mm

TM-SS5616-48F

48 (63) pin FBGA (9mm x 11mm, Pitch 0.8mm) adapter modules for Samsung K9F5608U0C-HCB0

Open-Top
Socket

9mm x 11mm
Pitch=0.8mm

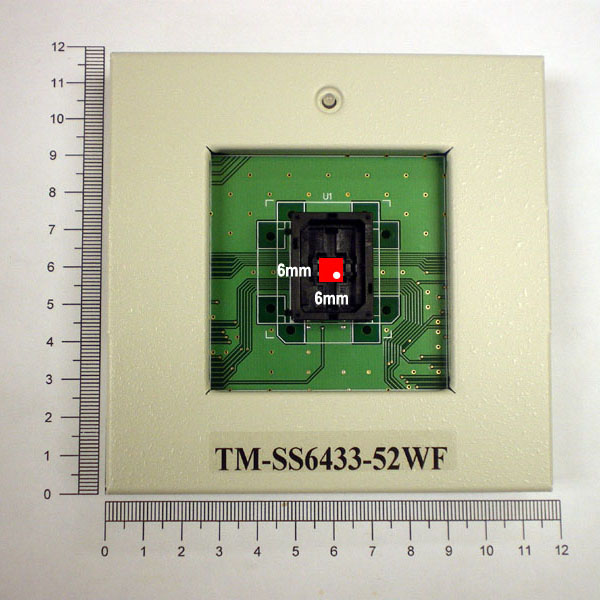

TM-SS6433-52WF

52 pin WFBGA (6mm x 6mm, Pitch 0.5mm) adapter modules for Samsung K5N2833ATB-AQ12 / K5N6433ATM-AD11

Open-Top
Socket

6mm x 6mm
Pitch=0.5mm

TM-SST3284-80F

80 pin FBGA (8mm x 10mm, Pitch 0.8mm) adapter modules for SST 34HF3284

Clam-Shell
Socket

8mm x 10mm
Pitch=0.8mm

TM-SST800-48F

48 pin FBGA (6mm x 8mm, Pitch 0.8mm) adapter modules for SST 39LF800A

Open-Top
Socket

6mm x 8mm
Pitch=0.8mm

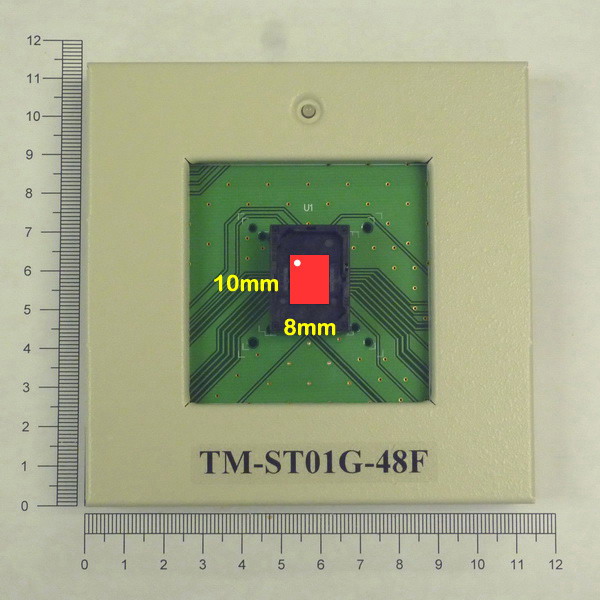

TM-ST01G-48F

48 (55) pin FBGA (8mm x 10mm, Pitch 0.8mm) adapter modules for ST NAND256W3A

Open-Top
Socket

8mm x 10mm
Pitch=0.8mm

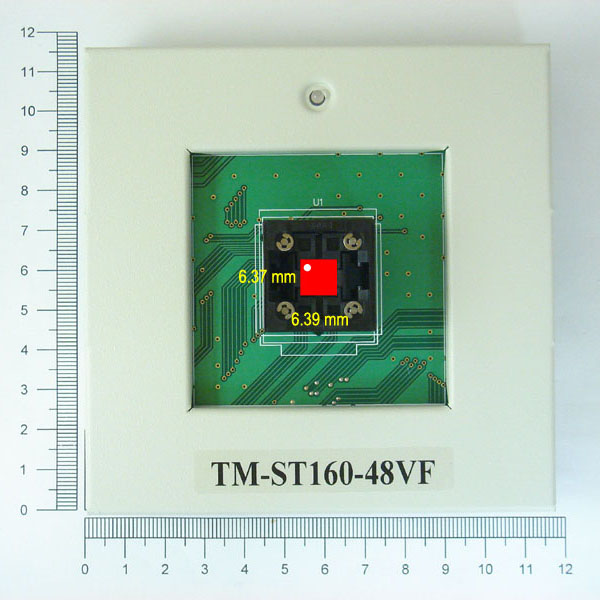

TM-ST160-48VF

48 pin VFBGA (6.37mm x 6.39mm, Pitch 0.75mm) adapter modules for ST M28W160BT/B

Open-Top
Socket

6.37mm x 6.39mm
Pitch=0.75mm

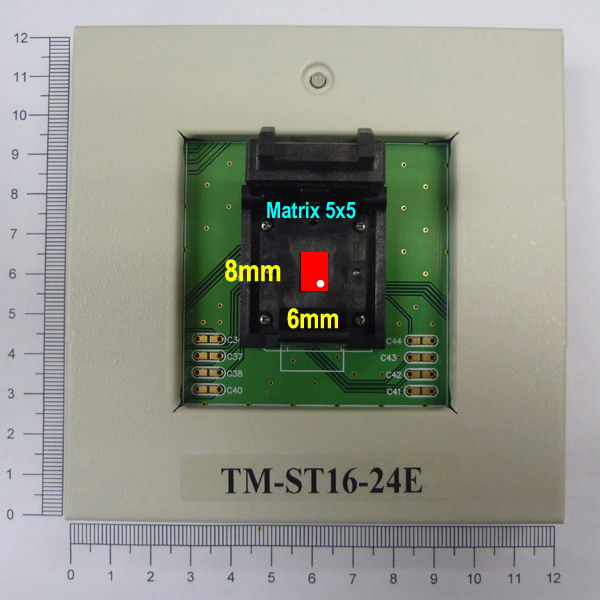

TM-ST16-24E

24 pin EBGA (6mm x 8mm, Pitch 1.0mm, Matrix 5x5) adapter for Numonyx M25PX80/16/32/64 (WELLS)

Clam-Shell
Socket

6mm x 8mm
Pitch=1.0mm

TM-ST16-24EM

24 pin EBGA (6mm x 8mm, Pitch 1.0mm, Matrix 5x5) adapter for Numonyx M25PX80/16/32/64 (MCS)

Open-Top
Socket

6mm x 8mm
Pitch=1.0mm

TM-T5782-60F

60 pin FBGA (9mm x 12mm, Pitch 0.8mm) adapter modules for Toshiba TH50VPF5782/83AASB

Open-Top
Socket

9mm x 12mm
Pitch=0.8mm

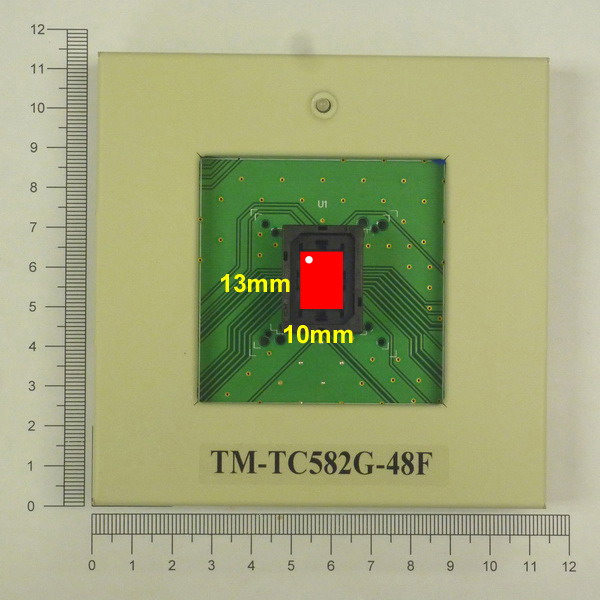

TM-TC582G-48F

48 (63) pin FBGA (10mm x 13mm, Pitch 0.8mm) adapter modules for Toshiba TC58NVG1S3EBAI5

Open-Top
Socket

10mm x 13mm
Pitch=0.8mm

TM-TC589S-48F

48 (67) pin FBGA (6.5mm x 8mm, Pitch 0.8mm) adapter modules for Toshiba TC58NVM9S3EBAI6

Open-Top
Socket

6.5mm x 8mm
Pitch=0.8mm

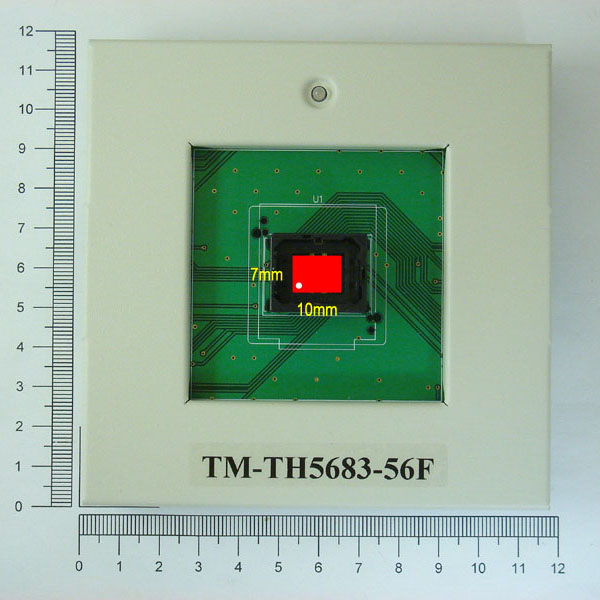

TM-TH5683-56F

56 pin FBGA (7mm x 10mm, Pitch 0.8mm) adapter modules for Toshiba TV00560002(003)EDGB

Open-Top
Socket

7mm x 10mm
Pitch=0.8mm

TM-TH584S-48F

48 (63) pin FBGA (10mm x 11mm, Pitch 0.8mm) adapter modules for Toshiba TH58NVG4S0FBAID

Open-Top
Socket

10mm x 11mm
Pitch=0.8mm

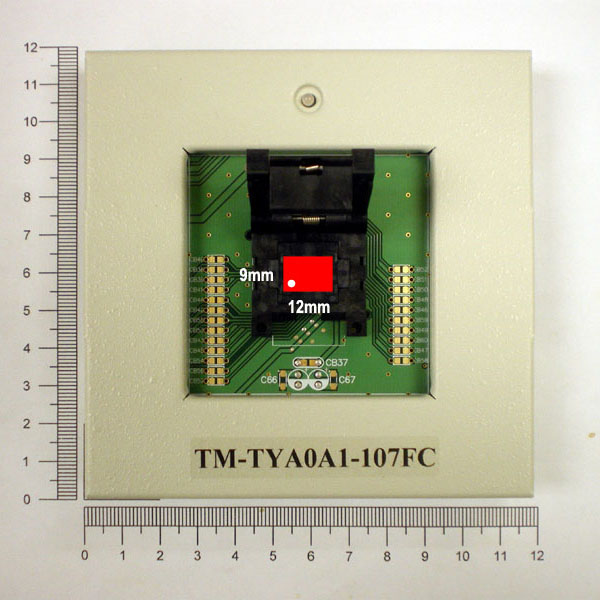

TM-TYA0A1-107FC

107 pin FBGA (9mm x 12mm, Pitch 0.8mm) adapter modules for Toshiba TY9A0A111171KC40 / TY8A0A111151KC40

Clam-Shell
Socket

9mm x 12mm
Pitch=0.8mm

TM-TYA0A1-130S

130 pin FSBGA (8mm x 9mm, Pitch 0.65mm) adapter modules for Toshiba TY9A0A111300KA40

Open-Top
Socket

8mm x 9mm
Pitch=0.65mm

TM-UNIV-44PSO

44 pin PSOP (Body Width 525mil, Pitch 1.27mm) universal adapter modules

Open-Top
Socket



TM-UNIV-48TS

48 pin TSOP (12mm x 20mm, Pitch 0.5mm) universal adapter modules for 48 pin TSOP Type I Package Flash chip

Open-Top
Socket



TM-UNIV-48TS/W

48 pin TSOP (12mm x 14mm, Pitch 0.5mm) universal adapter modules for 48 pin TSOP Type II Package Flash chip

Open-Top
Socket

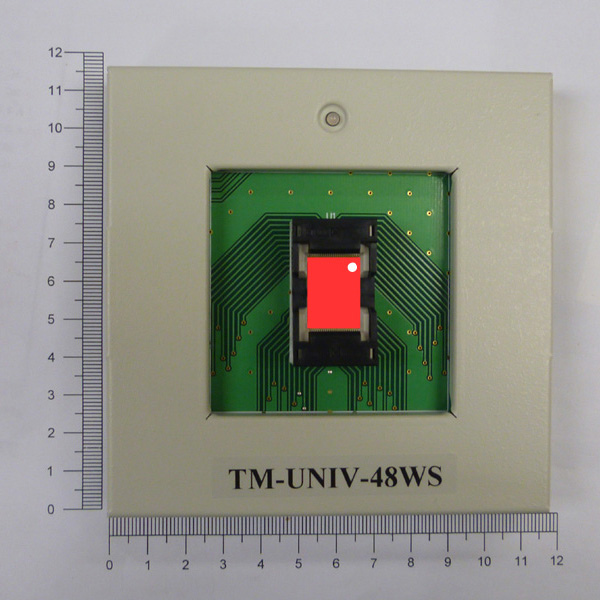

TM-UNIV-48WS

48 pin WSOP (12mm x 17mm, Pitch 0.5mm) universal adapter modules for 48 pin WSOP Type I Package Flash chip

Open-Top
Socket



TM-UNIV-56TS

56 pin TSOP (14mm x 20mm, Pitch 0.5mm) universal adapter modules

Open-Top
Socket



TM-W25N-8SON1

8 pin WSON (5mm x 6mm, Thickness 0.85mm, Pitch 1.27mm) adapter modules for SPI NAND Flash

Open-Top
Socket



TM-WT128-64F-Y

64 pin FBGA (8mm x 11mm, Pitch 0.8mm) adapter modules for WINBIZ W128F32S (YAMAICHI Socket)

Open-Top
Socket

8mm x 11mm
Pitch=0.8mm



Information Request Form

Name
Title
Company
Address
E-mail
Phone
FAX


For more information, please contact:

Advantech Equipment Corporation
Fl. 7, No. 98, Ming-Chuan Road, Shing-Tien City, Taipei, Taiwan, R.O.C.
Tel: 886-2-2218-2325
FAX: 886-2-2218-2435
